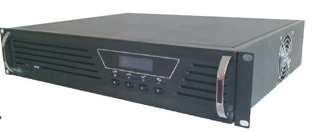

DIV Series Power Inverter
1kVA / 2kVA / 3kVA / 4kVA / 5kVA / 6kVA
- CPU제어 기술
- 순수한 정현파와 SPWM기술
- 강력한 부하력과 높은 호환성
- 고급 소음제거기술(Advanced reverse noise technology)
- AC모델 및 DC모델에 설정가능
- 오류보호(Fault Protection)
- Interface:RJ45, 무전압접점(Dry contact)
| MODEL | DIV500 | DIV1000 | DIV2000 | DIV3000 | DIV4000 | DIV5000 | DIV6000 |
|---|---|---|---|---|---|---|---|
| Capacity | 500VA | 1kVA | 2kVA | 3kVA | 4kVA | 5kVA | 6kVA |
| DC INPUT | |||||||
| Input Voltage | 12V/24V/48V/110V/220V | ||||||
| Reverse Noise | ≤10％ | ||||||
| AC BYPASS | |||||||
| Voltage(Vac) | 265V - 185V (±10V) | ||||||
| Input Current (A) | 2.3 | 4.5 | 9.1 | 13.6 | 18.2 | 22.7 | 27.3 |
| Transfer Time (ms) | ≤5㎳ | ||||||
| AC OUTPUT | |||||||
| Rated Capacity | 500VA | 1kVA | 2kVA | 3kVA | 4kVA | 5kVA | 6kVA |
| Output Power(W) | 400 | 800 | 1.6K | 2.4K | 2.8K | 3.5K | 4.2K |
| Voltage and Frequency | 220Vac, 50/60HZ | ||||||
| Rated Current (A) | 1.8 | 3.6 | 7.2 | 10.8 | 14.5 | 16 | 19.1 |
| Voltage Precision | 220±1.5% | ||||||
| Frequency Precision | 50/60±0.1% | ||||||
| Wave Form | Sine Wave | ||||||
| THDu | ≤3% | ||||||
| Transient Response | 5% | ||||||
| Power Factor (PF) | 0.8/0.7 | ||||||
| Overload capability | 120%, 30sec | ||||||
| Efficiency | ≥85% | ||||||
| Transfer to Bypass | ≤5ms | ||||||
| Environment | |||||||
| Isolation(IN/OUT) | 1500Vac, 1min | ||||||
| Noise (1 meter) | ≤40dB | ||||||
| Operation | 0~40℃ | ||||||
| Humidity | 0~80%(응축없이) | ||||||
| Altitude (m) | ≤2000 | ||||||
| PHYSICAL | |||||||
| Weight(Kg) | 8.5 | 12 | |||||
| Dimension | 482*356*88 | 482*388*88 | 482*400*176 | ||||
